PCB circuit board quotes vary depending on the material, process, number of layers, and other factors, and it is impossible to generalize. However, the PCB circuit boards offered in the store are known for their high quality and reasonable prices.

8 Key Cost Determinants for PCB Manufacturing

Material Selection

Base materials: FR4 grades (Shengyi > Kingboard > Guoji)
Thickness options: 0.2-3.0mm (+5-8% cost per 0.2mm increment)
Copper weights: 1/2OZ to 3OZ (35μm-105μm), +40% cost per weight doubling

Surface Finishes

Price ladder: OSP (cheapest) → HASL → ENIG → Gold plating (premium)
Eco-premium: Lead-free processes cost 15-20% more

Design Complexity

Micro-vias: <0.2mm holes add 30% drilling cost
Trace precision: < 4 mil line/space increases price by 50%
Special features: Blind/buried vias start at $30/m² extra

Copper Thickness

Standard: 1OZ (35μm) included
Upgrades: Each additional 1OZ adds 25% cost

Additional Cost Components

Quality Standards

IPC Class 2 (consumer) → Class 3 (industrial) → Military (2× price)

Tooling & Testing

Bulk orders: $150+ mold charge (>500pcs)
Testing fees:
Flying probe: $15-60/design
Test fixture: $150-220 (reusable)

Payment Terms

3-5% discount for cash payments

Order Parameters

MOQ pricing: <10m² priced as prototypes (+300%)
Rush service: 24-hour turnaround doubles base price

Instant Quote Guide

Pricing Formula:

    Total Cost = Base Material + (Area × Process Factor) + Special Features

Price Benchmarks:

Lead Times:

• 2L: 3 days (24hr rush +$30)
• 4L: 5-7 days (72hr rush +$90)

Using a systematic approach to optimize the PCB design process can effectively improve the performance and reliability of PCB design and ensure the stable operation of electronic devices.

Core Design Strategies & Innovative Practices

1. Precision Layout & Intelligent Routing

• Implement modular zoning with ≥5mm analog/digital isolation
• Apply 3W rule for high-speed components (spacing≥3×trace width)
• Thermal-aware chessboard placement with 0.5mm cooling via arrays

2. Advanced Power Delivery Network

• π-filter networks (100μF+0.1μF+10nF configuration)
• Power integrity simulation (target impedance<50mΩ@1MHz)
• Embedded capacitance technology (50nF/cm² density)

3. High-Speed Signal Integrity Solutions

• Differential pair control: ±2.5mil length matching
• Impedance control: ±10% tolerance (HSPICE-verified)
• Back-drilling technology (stub length<12mil)

4. Thermal Management 4.0

• 3D thermal simulation (ΔT<15℃ target)
• Hybrid cooling systems:
  • 2oz copper + thermal vias (φ0.3mm@1mm pitch)
  • Selective heatsink attachment (>5W/mK)

5. EMI/EMC Defense Matrix

• Faraday cage shielding (>60dB@1GHz)
• Ferrite bead arrays (100Ω@100MHz)
• Segmented ground planes (crossings<λ/20)

Manufacturing Innovations

6. DFM 2.0 Standards

• HDI process controls:
  • Laser microvias: φ75±15μm
  • Layer alignment: ±25μm
• 3D-printed prototyping (24hr turnaround)

7. Smart Test Ecosystem

• JTAG boundary scan (>95% coverage)
• AI-driven test systems:
  • Automated TDR (±1% resolution)
  • Real-time thermal imaging (0.1℃ resolution)

Reliability Enhancements

8. Military-Grade Robustness

• HALT testing (6σ compliance)
• Nanocoating technology (300% improved protection)
• Self-healing circuits (MTBF>100,000hrs)

9. Next-Gen Stackup Architecture

• Hybrid material stackup:
  • RF layers: Rogers 4350B (εr=3.48)
  • Standard layers: High-Tg FR-4 (>170℃)
• Embedded component technology (40% integration boost)

Verification Methodology

10. Full Lifecycle Validation

• Phase-gated verification:
  1. Pre-layout SI/PI simulation
  2. Prototype TDR testing
  3. Production HASS validation
• Digital twin modeling (>90% prediction accuracy)

Performance Benchmarking

Industry Implementation Cases

5G Base Station Breakthroughs:

• 77GHz mmWave transmission
• <8mVrms power noise
• <8℃/cm² thermal gradient

EV Power Systems:

• 200A stacked busbars
• 150℃ continuous operation
• ISO 26262 ASIL-D certified

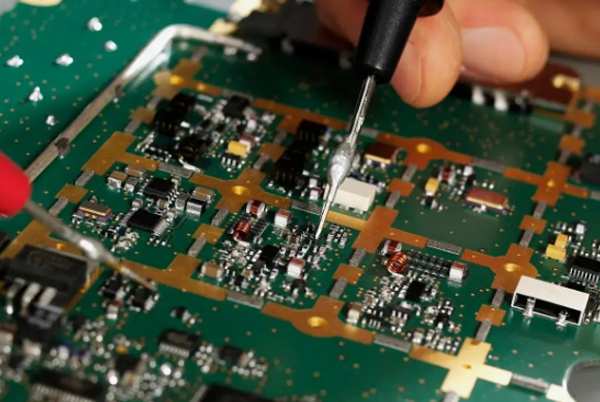

Circuit Board Repair Guide: From Beginner to Expert
Circuit boards are the core component of modern electronics, from smartphones to industrial control systems. Mastering circuit board repair skills will not only save you a lot of money on repairs, but will also extend the life of your electronic devices. This guide provides a comprehensive introduction to all aspects of circuit board repair, including diagnosing common problems, selecting repair tools, safety precautions, and detailed repair procedures.

Circuit Board Basics

Printed circuit boards (PCBs) consist of multiple layers of conductive and non-conductive materials and serve as a mounting substrate for electronic components. A standard circuit board contains the following key components:

• Alignments: conductive paths made of thin copper wires that are responsible for conducting current between components
• Pads and vias: copper contact points for soldering components, with vias connecting the different layers
• Soldermask: insulating coating that protects the copper wires from short circuits
• Silkscreen layer: Identification layer to mark the position and orientation of components
• Electronic components: including resistors, capacitors, diodes, transistors, etc.
  Understanding these basic structures is the first step in successfully repairing a circuit board. Different types of circuit boards (single, double, or multilayer) require different repair methods, and multilayer boards are particularly complex to repair.

Common Types of Circuit Board Failures

Circuit boards can fail for a variety of reasons, and recognizing the problem is a critical first step in repair. The following are the five most common types of failures:

1. Physical Damage

Physical damage to the board can be caused by dropping, hitting, or improperly disassembling the device. Manifestations are:

• Broken or bent circuit boards
• Dislodged solder pads
• Broken traces
• Loose or detached components

Component failure

Electronic components may fail due to aging, overheating, or voltage instability:

• Capacitors bulging or leaking
• Burnt and discolored resistors
• Ruptured integrated circuits (ICs)
• Transistor or diode shorts

3. Damage to the conductor path

Conductive paths can be damaged by:

• Lightning strikes or power surges
• Metal dust contamination
• Prolonged overheating
• Normal wear and tear

4. Defective design

Poorly designed boards are often characterized by:

• Improper component spacing
• Inadequate routing
• Inadequate thermal design
• Repeated occurrence of the same fault.

5. Power Supply Failures

Power supply problem may cause:

• Component burnout
• Short circuit
• Protective circuit triggering
• Overall functionality failure

PCB Repair Tools and Equipment

Professional repairs require the right tools. Below is a list of basic and advanced repair tools:

Basic tools

• Soldering iron: Adjustable temperature control model (30-60W) is recommended.
• Soldering wire: 0.5-1mm diameter rosin cored solder
• **Desoldering tools **: tin sucker or tin suction line
• Multimeter: for measuring voltage, resistance and continuity
• Tweezers: precision pointed tweezers to handle small components
• Magnifier or microscope: to inspect tiny components and alignments
• Screwdriver set: to disassemble equipment cases

Advanced Tools

• Hot Air Rework Station: Professional disassembly of surface mounted components (SMD)
• Oscilloscope: Analyze signal waveforms
• ESD anti-static workstation: prevent static electricity damage to sensitive components
• UV Soldermask Repair Pen: Repair damaged soldermask layer
• BGA rework station: repair ball grid array package chip

Safety Precautions

Circuit board repair involves electronic components and potential hazards, the following safety guidelines must be observed:

• Power-off operation: Ensure that the equipment is completely powered off and batteries are removed prior to servicing
• Static protection: Wear an anti-static wrist strap and use an anti-static mat
• Personal Protection:

• Goggles to prevent solder splatter
• Work in a ventilated area or use a fume absorber.

• Working Environment:

• Clean, well-lit work area
• Keep away from flammable materials

• Tool safety:

• Place hot tools correctly.
• Use proper tool size

PCB repair step by step

The first step: visual inspection

Carefully inspect the circuit board for visible damage:

• Burnt or discolored areas
• Expanded or leaking capacitors
• Broken alignments
• Loose or missing components
• Cold solder joints (dull, lifeless solder joints)

Use a magnifying glass or microscope to check for minor damage.

Step 2: Function Test

Use a multimeter to perform basic tests:

1. Check for proper power input
2. Test voltage at critical points
3. Measure resistance of suspect components
4. Check alignment continuity using a pass-through test

For complex faults, an oscilloscope may be required to analyze the signal.

Step 3: Faulty Component Removal

• Determine the location of the defective component
• Select the desoldering method based on the component type:

• Through-hole components: use a solder sucker or a soldering wire
• SMD components: use a hot air gun or rework station

• Remove the component carefully to avoid damaging the pads.

Step 4: Pad and Alignment Repair

• Clean pads: use isopropyl alcohol and cotton swabs
• Repair damaged alignments:

• Scrape away the soldermask to expose the copper wires.
• Use thin copper wire or conductive silver paint to connect the broken points.
• Protect the repair area with UV soldermask

• Repair stripped pads:

• Rebuild pads with copper foil tape
• Drill holes and install pad repair kit

Step 5: Install New Components

• Select a replacement component with matching specifications
• Place the component correctly:

• Note polarized component orientation
• SMD components are placed precisely using tweezers

• Solder:

• Soldering: Fix one pin for through-hole components first
• SMD components using solder paste and hot air gun

• Check the quality of the solder joint:

• Should be smooth and shiny
• No bridging or false soldering

Step 6: Functional Verification

1. Visually inspect solder quality
2. Use multimeter to test key points
3. Step-by-step power-on test
4. Full Function Test

Special Repair Techniques

Surface Mount Device (SMD) Repairs

1. Use solder paste to accurately coat pads.
2. Place component with tweezers
3. Heat evenly with a heat gun until the solder reflows.
4. Avoid overheating, which can cause the “tombstone effect” (one end of the component warps).

Multilayer Repair

1. Use a through-hole microscope to inspect the inner layer.
2. Specialized equipment is required to repair the inner layer alignment.
3. Use copper wire or conductive epoxy for via repair

BGA chip repair

1. Use BGA rework station for precise temperature control.
2. Rebuild the solder ball with a ball placement tool
3. X-ray inspection for solder quality

Post Repair Testing and Verification

Complete testing is the key to ensure a successful repair:

• Basic Test:

• Power supply short circuit test
• Static current measurement
• Voltage check at critical points

• Functional Tests:

• Input and output signal verification
• Load test
• Long time running test

• Environmental test (critical equipment)

• Temperature cycling
• Vibration test
• Humidity test

Preventive Maintenance Recommendations

Practical tips to extend the life of your circuit boards:

• Clean regularly:

• Use compressed air to remove dust
• Isopropyl Alcohol to clean contact points

• Environmental Control:

• Avoid high temperature and high humidity environments
• Prevent metal dust contamination

• Electrical protection:

• Use regulated power supply
• Installation of surge protectors

• Physical Protection:

• Avoid mechanical stress
• Use appropriate fixing and cushioning

Frequently Asked Questions

Q: Can I repair a circuit board without a schematic?
A: Yes, but it is difficult. By analyzing the circuit direction and comparison method can be inferred function, complex circuits are recommended to find the schematic diagram.

Q: How to determine whether the capacitor is damaged?
A: Visual inspection for bulging or leakage, multimeter to measure the capacitance value, ESR meter to measure the equivalent series resistance.

Q: Will the board life be affected after repair?
A: Professional repair has little effect on life, but repeated repair especially high temperature operation will shorten component life.

Q: Which circuit boards are not worth repairing?
A: Large burned out areas, damaged inner layers of multilayer boards, cheap boards, or boards that have been discontinued with no access to components.

Q: How can I learn more advanced repair techniques?
A: Start with simple repairs to gain experience, attend professional training, and study industry standards such as IPC-7711/7721.

Summary

Circuit board repair is a combination of technical knowledge, practical experience and patience. With this guide, you have mastered the full range of skills from basic inspections to complex repairs. Remember, successful repairs begin with accurate diagnosis and end with careful handling. As you gain experience, you will be able to handle increasingly complex circuit board failures, contributing to the extended life and resource conservation of electronic equipment.

What is PCBA

The full name of PCBA is Printed Circuit Board Assembly, i.e. Printed Circuit Board Assembly, which refers to the assembly of electronic components, connectors, plug-ins, digital logic gates, micro-control units, etc. onto a printed circuit board, and then a variety of processes such as soldering and plugging to make it a complete functional module of an electronic product.

What are the common components on the PCB

1.Passive components

1. Resistors (Resistor)
   Function: Limit the current size, voltage shunt
   Common types: carbon film resistors (economical and practical), metal film resistors (higher precision), wirewound resistors (high-power applications), chip resistors (SMD, modern mainstream)
   Identification techniques: color ring code: 4-6 color rings to indicate the resistance value and accuracy, chip code: 3-4 digits to indicate the resistance value
   Circuit Symbol: Rectangular box or wavy line
2. Capacitor (Capacitor)
   Function: energy storage, filtering, coupling
   Mainstream types: electrolytic capacitors (large capacity, polarity), ceramic capacitors (good high frequency characteristics), tantalum capacitors (small size, high stability), film capacitors (high precision)
   Circuit marking: “C” beginning (such as C1, C2)
   Selection points: capacitance value, withstand voltage value, temperature coefficient

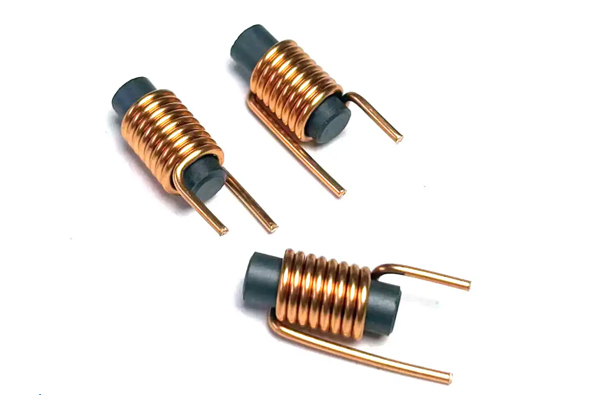

3. Inductor (Inductor)
   Function: filtering, energy storage, current stabilization
   Main categories: hollow inductors (high-frequency applications), ferrite inductors (anti-interference), chip inductors (space-saving), power inductors (high-current)
   Circuit marking: “L” beginning (such as L1, L2)

2.Semiconductor devices

1. Diode (Diode)
   Function: unidirectional conductivity, voltage stabilization, light-emitting
   Common types: rectifier diodes (such as 1N4007), voltage regulator diodes (such as 1N4742), Schottky diode (low drop), LED (light-emitting diode), TVS diodes (anti-static)
   Circuit marking: “D” beginning
2. Transistor (Transistor)
   Function: signal amplification, switching control
   Main types: transistor (BJT), field effect tube (MOSFET), IGBT (high-power switch)
   Package: TO-92 (low power), TO-220 (medium power), SOT-23 (SMD)

3.Integrated Circuits

1. Analog IC
   Operational amplifiers, voltage regulators, data converters (ADC/DAC)
2. Digital ICs
   Microcontroller (MCU)
   Memory (Flash, RAM), logic gate circuits
3. Mixed-signal ICs
   Wireless transceiver chips, sensor interface ICs

4.Other Important Components

1. Connectors
   Pin header/female connector, USB/HDMI interface, board-to-board connector
2. Protection components
   Fuses, varistors, gas discharge tubes
3. Electromechanical components
   Relay, switch, buzzer

What certifications are required for components

Specific certification requirements for different types of components
Integrated circuits: ISO/IEC 27001 Information Security Management System certification is required to ensure that the design and manufacture comply with the relevant standards.
Capacitors and resistors: RoHS certification is required to ensure that they do not contain hazardous substances.
Connectors: UL certification or other electrical safety certification is required to ensure safety during use.
LED components: Safety and performance certifications are required to ensure compliance in lighting and display applications.
Semiconductor devices: need to be AEC-Q100 certified for use in automotive electronics.
Sensors: industry-specific certifications may be required, such as ISO 13485 for medical electronics
These certifications not only ensure the quality and safety of the product, but also help the product to be compliant in the marketplace.

The role of common components on the PCB

1.Resistor (Resistor)
Core functions: current limiting, voltage distribution, signal regulation
Typical applications: provide the appropriate bias voltage for the transistor, in the sensor circuit to adjust the signal level, as a current-limiting LED protection components
2.Capacitor
Core functions: energy storage, noise filtering, signal coupling
Typical applications: power supply circuit filtering (to eliminate ripple), signal coupling in audio circuits, digital IC power pin decoupling
3.Inductor
Core functions: energy storage, high-frequency filtering, current stabilization
Typical applications: switching power supply energy conversion, impedance matching in RF circuits, the key components of EMI filters
4.Diode (Diode)
Core functions: one-way conductivity, voltage regulation, circuit protection
Typical applications: AC to DC rectifier circuit, over-voltage protection TVS diode, to prevent the power reverse protection circuit
5.Transistor (Transistor)
Core functions: signal amplification, electronic switching, current control
Typical applications: audio signal amplification, digital logic circuits, motor drive control
6.Integrated Circuit (IC)
Core functions: realization of complex electronic functions
Typical applications: microcontrollers (system control core), operational amplifiers (signal processing), power management ICs
7.Electromechanical components
Switches: circuit on/off control
Connectors: electrical connection between modules
Relay: small current to control large current
Indication and alarm components
LED: visual indication of working status
Buzzer: audible alarm indication
8.Protection Components
Fuse: overcurrent protection
Varistor: Surge protection
Gas discharge tube: lightning protection
9.Sensor Components
Temperature sensor: environmental monitoring
Photoresistor: Light intensity detection
Accelerometer: Motion sensing

How to quickly identify PCB components

Look at the marking: letters + numbers next to the component numbering
Look at the package: different components have a typical package form
Measurement parameters: using a multimeter to measure the basic characteristics of the
Check the information: according to the model query specifications

PCB on the common component symbols

PCB on the common component symbols include resistance (R), capacitance (C), inductance (L), integrated circuits (IC), diodes (D), transistors (Q), transformers (T) and so on.

Character Circuit Diagram Symbols

1.Basic electrical symbols

1. Power supply category
   AC: alternating current symbol (wavy line)
   DC: direct current symbol (straight line + dotted line)
   G: generator symbol (circle with G)
2. Protective devices
   FU: Fuse (rectangular center break)
   FF: Falling fuse (rectangle with slash)
   FV: Voltage limiting protection device (rectangle with arrow)

2.Control device symbols

1. Switch category
   QS: Disconnecting switch (slash disconnect)
   QF: Circuit breaker (with trip symbol)
   SB: Push-button switch (half-circle connection)
2. Relays
   KA: Instantaneous relay (with lightning in the box)
   KT: Time relay (with clock in the box)
   KH: Thermal relay (with wavy lines in the box)

3.Measuring Instrument Symbols

1. Basic meter
   PA: ammeter (A in circle)
   PV: Voltmeter (V in circle)
   PPF: Power factor meter (cosφ in circle)
2. Electricity measurement
   PJ: Active meter (Wh in circle)
   PJR: reactive power meter (VARh in circle)

4.Motor and actuator

1. Electric motor
   M: General symbol for electric motor (M in circle)
   MS: Synchronous motor (double circle)
   MA: Asynchronous motor (with slash in circle)
2. Actuator
   YV: Solenoid valve (rectangle with wavy line)
   YM: Motorized valve (rectangle with gear)
   YE: electric actuator (rectangle with arrow)

5.Signal indicating device

1. Indicator light
   HR: red light (solid circle with H)
   HG: green light (solid circle with G)
   HY: Yellow light (solid circle with Y)
2. Signaling device
   HA: Acoustic signal (horn symbol)
   HS: Light signal (lightning symbol)
   HP: Light sign (rectangle with text inside)

6.Special Component Symbols

1. Sensor type
   BL: Liquid level sensor (trapezoidal with wavy lines)
   BT: Temperature sensor (rectangle with thermometer)
   BV: speed sensor (rectangle with tachometer)
2. Power electronics
   UR: Thyristor rectifier (triangular with gate)
   UI: Inverter (rectangle with bidirectional arrow)
   UF: Inverter (rectangle with frequency symbol)

7.Wiring and connecting devices

1. Connection devices
   XT: Terminal block (circular arrangement of points)
   XB: Connection tabs (rectangular connecting wires)
   XP/XS: plug socket (concave butt symbol)
2. Busbar system
   W: DC busbar (thick solid wire)
   WV: voltage mini-busbar (dotted line)
   WCL: closing small busbar (with switch symbol)
   Mastering these symbols is the basis for understanding circuit schematics, and with experience, you will be able to quickly interpret a variety of complex electrical drawings.

PCB component layout and wiring design

1.Basic principles of component layout

1. Strategic Priority Layout
   First arrange the core IC and large components (such as processors, FPGA)
   Then arrange key peripheral circuits (clock circuits, power modules)
   Finally arrange small passive components (resistors, capacitors, etc.)
2. Signal flow optimization layout
   According to the schematic signal flow direction (input → processing → output) sequence layout
   Critical signal paths are minimized (especially for high-speed signals)
   Sensitive signals away from interference sources (e.g. switching power supply)
3. Symmetry aesthetics and functional balance
   Mirror symmetry layout for the same functional modules
   Uniform distribution of components on the board (to avoid weight skew)
   Balanced heat dissipation and electromagnetic compatibility.

2.Professional layout details

1. Functional modular layout
   Strict partitioning of digital/analog circuits (recommended spacing >5mm)
   Separate isolation for RF circuits
   Centralized arrangement of power supply modules
2. Safety spacing specification
   Components from the board edge ≥ 5mm (to prevent processing damage)
   Between the chip components ≥ 2mm (easy to repair)
   Between high-voltage components ≥ 8mm (safety requirements)
3. Special component processing
   Heat generating components:
   Uniform distribution to avoid hot spot concentration
   Keep away from heat-sensitive components (such as electrolytic capacitors)
   Add heat sinks if necessary
   High frequency components:
   As close to the center of the board as possible
   Keep away from I/O ports
   Use ground shield protection
4. Decoupling capacitor arrangement
   0.1μF capacitor on each power pin
   Layout distance <3mm (ideally mounted on the backside)
   When multiple capacitors are connected in parallel, they are arranged from smallest to largest capacity.

3.Intelligent wiring strategy

1. Prioritize key signals
   Clock signals:
   Thicker line width (usually 8-12 mil)
   Full accompanying ground
   Avoid right-angle turns
   Differential signals:
   Strictly equal length (error <50 mil)
   Parallel alignment
   Impedance matching
2. High-density wiring techniques
   Start from BGA and other complex devices
   Route through the densest areas first
   Use 45° diagonal transition
3. Layered routing scheme
   Layer stacking is recommended:
   Top layer: critical signals
   Inner layer 1: complete ground plane
   Inner layer 2: Power plane
   Bottom Layer: Common Signals
   High Frequency Signal Recommendation:
   Ribbon line alignment (inner layer)
   Avoid Cross-Split Zones

How to do PCBA fabrication

PCBA fabrication is a complex and delicate process that requires specialized knowledge and equipment. The following are the general steps for PCBA production:
1.circuit design: according to the functional requirements of electronic products, design circuit diagrams, and use professional EDA software, such as Altium Designer, etc., circuit board design.
2.printed circuit board manufacturing: the design of the circuit diagram printed production into a solid circuit board, which usually needs to be through photolithography, etching, drilling and other steps.
3.component procurement: according to the circuit design, procurement of the appropriate electronic components, including resistors, capacitors, inductors, diodes, transistors, integrated circuits and so on.
44component assembly: the procurement of components in accordance with the circuit design requirements placed on the printed circuit board, which usually need to be carried out through the mounter and other specialized equipment.
5.welding: components and printed circuit board welding, including wave soldering, reflow soldering and other methods.
6.Testing: Test the completed PCBA, including visual inspection, electrical testing, functional testing, etc., to ensure that its function is correct and free of defects.
7.Packaging：Packaging and labeling of the tested PCBA, including anti-static packaging, moisture-proof packaging, etc., to ensure its safety in the transportation and use of the process.

PCBA Application Areas

PCBA technology has been deeply integrated into various fields of modern society:
Consumer electronics: the miniaturized core of smartphones and tablets
Automotive industry: the nerve center of electrification and intelligent driving
Medical equipment: the lifeline of high-precision diagnostic instruments
Industry 4.0: the control core of intelligent manufacturing systems
Aerospace industry: the technological cornerstone of highly reliable equipment

Future Development Trends

1.Heterogeneous integration technology
2.5D/3D packaging breaks through the plane limitation
Silicon photonics integration to enhance transmission bandwidth
2.Green Manufacturing Transformation
Lead-free process popularization
Recyclable Material Application
3.Digital Twin Application
Virtual Prototyping Accelerates Development
Intelligent Predictive Maintenance

In the PCBA design and manufacturing process, the correct selection and rational use of electronic components is crucial. Designers need to select the appropriate types and specifications of electronic components based on the functional requirements of the circuit, performance requirements and cost considerations. At the same time, it is also necessary to consider the layout of components, soldering process and reliability to ensure that the quality and performance of the circuit board meets the expected requirements.
